Alarms, Buzzers, and Sirens
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Driver Circuitry | Input Type | Voltage - Rated | Voltage Range | Frequency | Technology | Operating Mode | Duration | Sound Pressure Level (SPL) | Current - Supply | Port Location | Operating Temperature | Approval Agency | Ratings | Ingress Protection | Mounting Type | Termination | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SBT12MMPPCBUZZER PIEZO 44.5MM TH |
0 |
|
Datasheet |
- | Bulk | Active | Indicator, Internally Driven | DC | - | 9 ~ 12V | 2.075kHz | Piezo | Pin Selectable | Variable | 85dB @ 9V, 10cm | 15 ~ 20mA | Top | -30°C ~ 65°C | cUL, UL | Medical | - | Through Hole | PC Pins | 1.752" Dia (44.50mm) |
|
SBT12MMTPCBUZZER PIEZO 44.5MM TH |
0 |
|
Datasheet |
- | Bulk | Active | Indicator, Internally Driven | DC | - | 9 ~ 12V | 2.075kHz | Piezo | Pin Selectable | Variable | 85dB @ 9V, 10cm | 15 ~ 20mA | Top | -30°C ~ 65°C | cUL, UL | Medical | - | Through Hole | PC Pins | 1.752" Dia (44.50mm) |
|
SBT12MMVPCBUZZER PIEZO 44.5MM TH |
0 |
|
Datasheet |
- | Bulk | Active | Indicator, Internally Driven | DC | - | 9 ~ 12V | 2.075kHz | Piezo | Pin Selectable | Variable | 85dB @ 9V, 10cm | 15 ~ 20mA | Top | -30°C ~ 65°C | cUL, UL | Medical | - | Through Hole | PC Pins | 1.752" Dia (44.50mm) |
|
SBT12MMXPCBUZZER PIEZO 44.5MM TH |
0 |
|
Datasheet |
- | Bulk | Active | Indicator, Internally Driven | DC | - | 9 ~ 12V | 2.075kHz | Piezo | Pin Selectable | Variable | 85dB @ 9V, 10cm | 15 ~ 20mA | Top | -30°C ~ 65°C | cUL, UL | Medical | - | Through Hole | PC Pins | 1.752" Dia (44.50mm) |
|

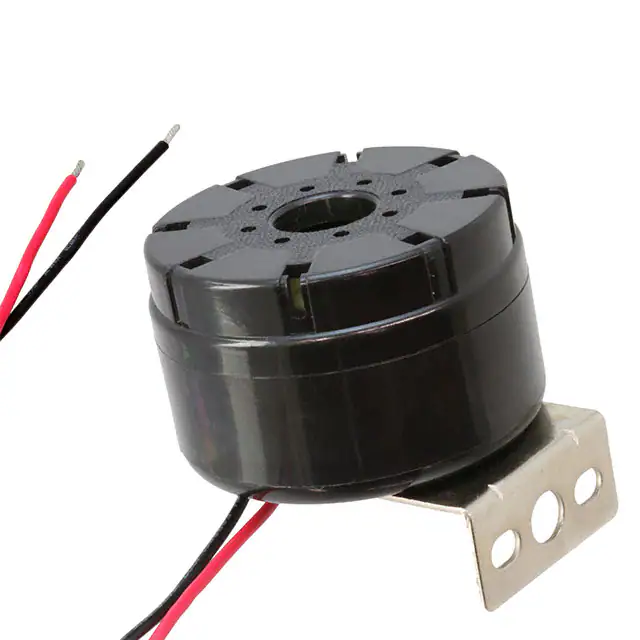

IP602812-1BUZZER PIEZO 12V 60MM FLANGE |
0 |
|
Datasheet |
- | Tray | Active | Indicator, Internally Driven | DC | 12 V | 6 ~ 15V | 2.8kHz | Piezo | Single Tone | - | - | 300mA | Top | -20°C ~ 70°C | - | - | - | Panel Mount, Flange | Wire Leads | 2.362" Dia (60.00mm) |
|
ZA028MACTBUZZER PIEZO 30.74MM PNL MNT |
0 |
|
Datasheet |
ZA | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 16 ~ 28V | 3.3kHz | Piezo | Single Tone | - | 75dB @ 16V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) |
|
SC616PU-1RBUZZER PIEZO 42.85MM PNL MNT |
0 |
|
Datasheet |
SC | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 16V | 2.9kHz | Piezo | Pin Selectable | 5 PPS | 68dB @ 6V, 61cm | 30mA | Top | -30°C ~ 65°C | - | - | NEMA 3R, 4X, 12 | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) |
|
SC250ERBUZZER PIEZO 42.85MM PNL MNT |
0 |
|
Datasheet |
SC | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 60 ~ 250V | 1.9kHz | Piezo | Single Tone | - | 55dB @ 60V, 61cm | 5 ~ 16mA | Top | -30°C ~ 65°C | - | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) |
.jpg)
|
XB-09-201-Q(S)BUZZER PIEZO 35.81MM PNL MNT |
0 |
|
Datasheet |
AudioLarm II | Bulk | Active | Indicator, Internally Driven | AC | - | 30 ~ 120V | 2.9kHz | Piezo | Pulse, Slow | - | 103dB @ 120V, 61cm | 10 ~ 45mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Quick Connect Tab - 0.250" (6.35mm) | 1.410" Dia (35.81mm) |
|
|
ZA016SDDP2BUZZER PIEZO 30.74MM PNL MNT |
0 |
|
Datasheet |
ZA | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 16V | 3.3kHz | Piezo | Double Pulse, Fast | 2 PPS | 65dB @ 6V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) |
|
|
ZA016SDDP3BUZZER PIEZO 30.74MM PNL MNT |
0 |
|
Datasheet |
ZA | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 16V | 3.3kHz | Piezo | Double Pulse, Slow | 0.5 PPS | 65dB @ 6V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) |
|
ZA028SDDP2BUZZER PIEZO 30.74MM PNL MNT |
0 |
|
Datasheet |
ZA | Bulk | Active | Indicator, Internally Driven | DC | - | 16 ~ 28V | 3.3kHz | Piezo | Double Pulse, Fast | 2 PPS | 65dB @ 16V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) |
|
|
ZA016LDDP3BUZZER PIEZO 30.74MM PNL MNT |
0 |
|
Datasheet |
ZA | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 16V | 3.3kHz | Piezo | Double Pulse, Slow | 0.5 PPS | 85dB @ 6V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) |
|
|
ZA016MDDP2BUZZER PIEZO 30.74MM PNL MNT |
0 |
|
Datasheet |
ZA | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 16V | 3.3kHz | Piezo | Double Pulse, Fast | 2 PPS | 75dB @ 6V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) |
|
|
ZA016MDDP3BUZZER PIEZO 30.74MM PNL MNT |
0 |
|
Datasheet |
ZA | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 16V | 3.3kHz | Piezo | Double Pulse, Slow | 0.5 PPS | 75dB @ 6V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) |
|
|
ZA028MDDP2BUZZER PIEZO 30.74MM PNL MNT |
0 |
|
Datasheet |
ZA | Bulk | Active | Indicator, Internally Driven | DC | - | 16 ~ 28V | 3.3kHz | Piezo | Double Pulse, Fast | 2 PPS | 75dB @ 16V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) |
|
|
ZA028MDDP3BUZZER PIEZO 30.74MM PNL MNT |
0 |
|
Datasheet |
ZA | Bulk | Active | Indicator, Internally Driven | DC | - | 16 ~ 28V | 3.3kHz | Piezo | Double Pulse, Slow | 0.5 PPS | 75dB @ 16V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) |
|
|
ZA028LDDP2BUZZER PIEZO 30.74MM PNL MNT |
0 |
|
Datasheet |
ZA | Bulk | Active | Indicator, Internally Driven | DC | - | 16 ~ 28V | 3.3kHz | Piezo | Double Pulse, Fast | 2 PPS | 85dB @ 16V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) |
|
|
ZA028LDDP3BUZZER PIEZO 30.74MM PNL MNT |
0 |
|
Datasheet |
ZA | Bulk | Active | Indicator, Internally Driven | DC | - | 16 ~ 28V | 3.3kHz | Piezo | Double Pulse, Slow | 0.5 PPS | 85dB @ 16V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) |
|
|
ZA028SDDP3BUZZER PIEZO 30.74MM PNL MNT |
0 |
|
Datasheet |
ZA | Bulk | Active | Indicator, Internally Driven | DC | - | 16 ~ 28V | 3.3kHz | Piezo | Double Pulse, Slow | 0.5 PPS | 65dB @ 16V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) |
