Alarms, Buzzers, and Sirens
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Driver Circuitry | Input Type | Voltage - Rated | Voltage Range | Frequency | Technology | Operating Mode | Duration | Sound Pressure Level (SPL) | Current - Supply | Port Location | Operating Temperature | Approval Agency | Ratings | Ingress Protection | Mounting Type | Termination | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BPS8432L-12-CBUZZER PIEZO 12V 84X55MM FLANGE |
44 |
|
Datasheet |
- | Box | Active | - | DC | 12 V | 6 ~ 15V | 2.5Hz ~ 2.8Hz | Piezo | Single Tone | - | 105dB @ 12V, 100cm | 85mA | Top | -20°C ~ 70°C | - | - | - | Panel Mount, Flange | Wire Leads | 3.307" L x 2.165" W (84.00mm x 55.00mm) |
|
PK-27A35EPDYQBUZZER PIEZO 12V 36.5MM PNL MNT |
6 |
|
Datasheet |
PK | Bulk | Active | Indicator, Internally Driven | DC | 12 V | 3 ~ 15V | 3.5kHz | Piezo, LED, Yellow | Single Tone, Visual Indicator | - | 95dB @ 12V, 30cm | 18mA | Top | -20°C ~ 70°C | - | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.189" (4.80mm) | 1.437" Dia (36.50mm) |
|
BPS9234S-12-CBUZZER PIEZO 12V 92X92MM PNL MNT |
13 |
|
Datasheet |
- | Box | Active | - | DC | 12 V | 6 ~ 15V | 2.8kHz | Piezo | Siren, Single Tone, Pulse | - | 115dB @ 12V, 100cm | 300mA | Top | -20°C ~ 70°C | - | - | - | Panel Mount | Screw Terminals | 3.622" L x 3.622" W (92.00mm x 92.00mm) |
|
W-18-1BUZZER 12V 70MM WIRE |
40 |
|
Datasheet |
- | Tray | Active | - | - | 12 V | 6 ~ 15V | 2.5kHz ~ 4kHz | - | Siren | - | 105dB @ 12V, 100cm | 350mA | - | -30°C ~ 70°C | - | - | - | Wire Lead | Wire Leads | 2.756" Dia (70.00mm) |
|

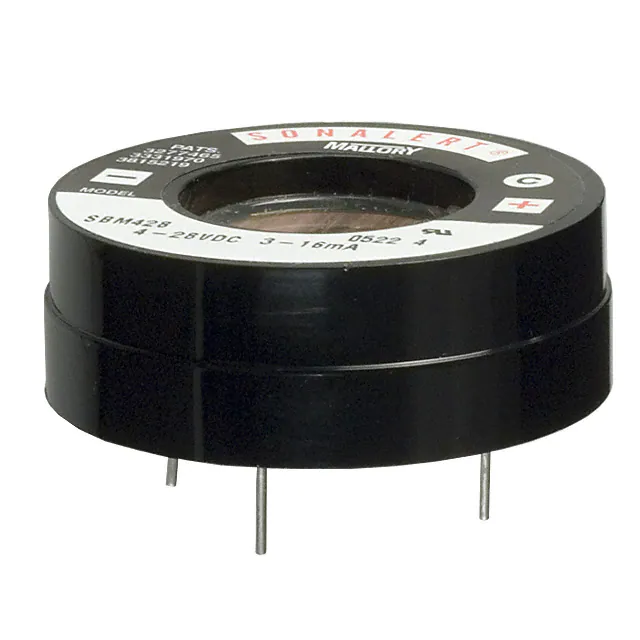

SBM428BUZZER PIEZO 42.85MM TH |
7 |
|
Datasheet |
SBM | Bulk | Active | Indicator, Internally Driven | DC | - | 4 ~ 28V | 2.9kHz | Piezo | Single Tone | - | 64dB @ 4V, 61cm | 3 ~ 16mA | Top | -30°C ~ 65°C | cUL, UL | - | - | Through Hole | PC Pins | 1.687" Dia (42.85mm) |
|
SBT5LMMDPCBUZZER PIEZO 44.5MM TH |
24 |
|
Datasheet |
- | Bulk | Active | Indicator, Internally Driven | DC | - | 3.3 ~ 5V | 2.075kHz | Piezo | Pin Selectable | Variable | 85dB @ 3.3V, 10cm | 15 ~ 20mA | Top | -30°C ~ 65°C | cUL, UL | Medical | - | Through Hole | PC Pins | 1.752" Dia (44.50mm) |
|
SCE016XD2CTBBUZZER PIEZO 42.98MM PNL MNT |
32 |
|
Datasheet |
SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 16V | 2kHz | Piezo | Single Tone | - | 95dB @ 6V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Terminal Block | 1.692" Dia (42.98mm) |
|
SCE016XD2DB2SBUZZER PIEZO 42.85MM PNL MNT |
6 |
|
Datasheet |
SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 16V | 2kHz | Piezo | Single Tone, Pulse, Medium | 5 PPS | 95dB @ 6V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) |
|
SC648ARBUZZER PIEZO 42.98MM PNL MNT |
21 |
|
Datasheet |
SC | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 10 ~ 48V | 2.9kHz | Piezo | Single Tone | - | 68dB @ 10V, 61cm | 4 ~ 16mA | Top | -30°C ~ 65°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.692" Dia (42.98mm) |
|
ZA028LASU2BUZZER PIEZO 30.74MM PNL MNT |
2 |
|
Datasheet |
ZA | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 16 ~ 28V | 3.3kHz | Piezo | Speed Up, Fast | - | 85dB @ 16V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) |
|
ZT028LACTBBUZZER PIEZO 30.74MM PNL MNT |
9 |
|
Datasheet |
ZT | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 20 ~ 28V | 3.7kHz | Piezo, LED, Blue | Single Tone, Visual Indicator | - | 85dB @ 20V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) |
|
ZT120LACTGBUZZER PIEZO 30.74MM PNL MNT |
7 |
|
Datasheet |
ZT | Bulk | Active | Indicator, Internally Driven | AC | - | 90 ~ 120V | 3.7kHz | Piezo, LED, Blue | Single Tone, Visual Indicator | - | 85dB @ 90V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) |
|
|
ZA120LASU2BUZZER PIEZO 30.74MM PNL MNT |
3 |
|
Datasheet |
ZA | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 48 ~ 120V | 3.3kHz | Piezo | Speed Up, Fast | - | 85dB @ 48V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) |
|
SC628HPRBUZZER PIEZO 42.98MM PNL MNT |
11 |
|
Datasheet |
SC | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 28V | 4.5kHz | Piezo | Pulse, Fast | 2 ~ 10 PPS | 68dB @ 6V, 61cm | 4 ~ 16mA | Top | -30°C ~ 65°C | UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.692" Dia (42.98mm) |
|
ZT028LACTR30BUZZER PIEZO 30.74MM PNL MNT |
8 |
|
Datasheet |
ZT | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 20 ~ 28V | 3.7kHz | Piezo, LED, Red | Single Tone, Visual Indicator | 30 Sec On-Time | 85dB @ 20V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) |
|
|
SC648APRBUZZER PIEZO 42.98MM PNL MNT |
13 |
|
Datasheet |
SC | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 10 ~ 48V | 2.9kHz | Piezo | Pulse, Fast | 2 ~ 10 PPS | 68dB @ 10V, 61cm | 6 ~ 21mA | Top | -30°C ~ 65°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.692" Dia (42.98mm) |
|
|
ZT028LACTR15BUZZER PIEZO 30.74MM PNL MNT |
4 |
|
Datasheet |
ZT | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 20 ~ 28V | 3.7kHz | Piezo, LED, Red | Single Tone, Visual Indicator | 15 Sec On-Time | 85dB @ 20V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) |
|
|
204330YA40/D/RN/WR Sounder |
3 |
|
Datasheet |
Yodalarm® | Tape & Box (TB) | Active | Transducer, Externally Driven | DC | 24 V | 1 ~ 28V | - | Piezo | Multiple Tone | - | 108dB @ 24V, 100cm | 35mA | Top | -35°C ~ 70°C | CE, EN | - | - | Base Mount | Screw Terminal | 0.098" Dia (2.50mm) |
|
874170408BUZZER MULTI-TONE ALARM SND |
2 |
|
Datasheet |
- | Box | Active | - | - | - | 24 ~ 48V | - | - | Multiple Tone | - | - | - | - | -30°C ~ 60°C | - | - | IP66 - Dust Tight, Water Resistant | - | Screw Terminal | - |
|
|
204881YA50/D/RF/WR Sounder |
3 |
|
- |
Yodalarm® | Tape & Box (TB) | Active | Transducer, Externally Driven | DC | 24 V | 1 ~ 28V | - | Piezo | Multiple Tone | - | 112dB @ 24V | 35mA | Top | -35°C ~ 70°C | CE, EN | - | - | Base Mount | Screw Terminal | 0.098" Dia (2.50mm) |
Alarms, Buzzers, and Sirens Electronic Components
Explore Alarms, Buzzers, and Sirens electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
